P1-420CPSC One color pad printer with lateral movement cup //Structure
|
|
Working table
|
Standard working table with 3-size adjustment
|
|
Ink supply system
|
Closed -type system
|
|
Plate type and size
|
0.3mm Thin steel plate. Size ：100*500mm.
|
|
Pad dropping control
|
Simple-cylinder , simultaneously pressing
|
|
P1-420CPSC One color pad printer//Usage and characters
|
|
Guide
|
-
Transverse movement pattern using the sealed cup, the plate can be placed even greater, larger print area;
-
With sealed cup to protect environment ， VOC volatilization reduced 86% and save ink over 25%.
-
With coin aluminum structure ensure more stabilization and long life.
-
Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
-
Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
-
Can print almost small size objects . So sold very nice in the world.
-

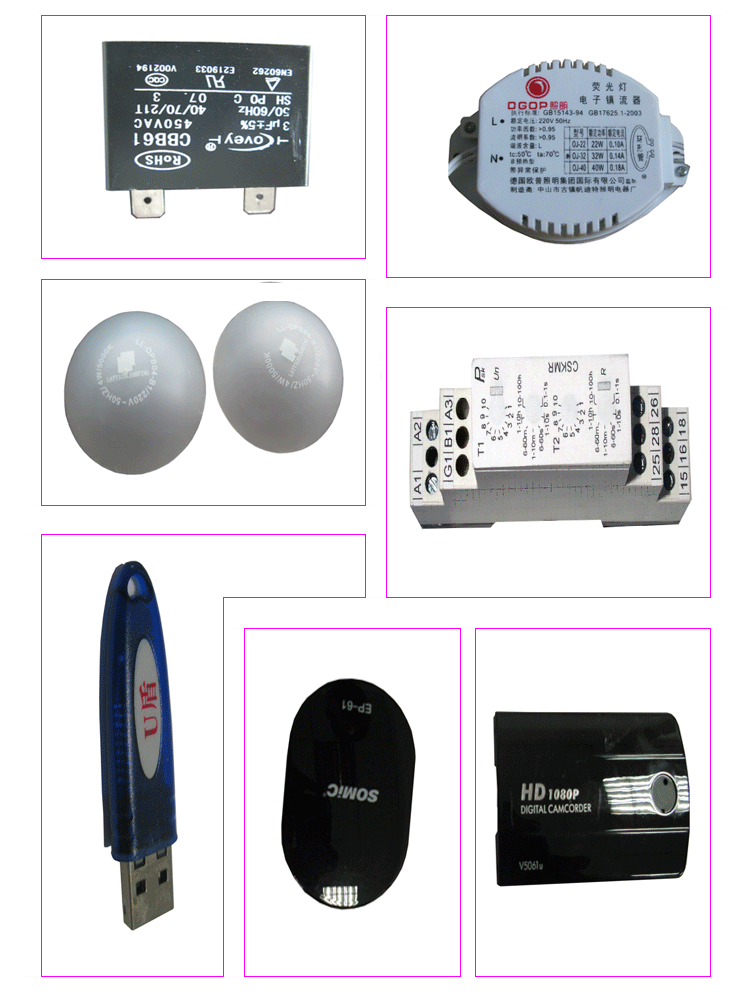

Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
-
Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
|
|
Application fields
|
Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
|
|
P1-420CPSC One color pad printer //Parameter
|
|
Technical parameters
|
-
Max. steel plate: 100 ×500mm；
-
Ink cup size: Ф90mm；
-
Max. printing area :50×380 mm ；
-
Printable color quantity:1；
-
Max. printing speed: 1000 pcs/h;
-
Table size: 165*500mm
|
|
Works supply
|
-
110V-220VPower supply；
-
5-7Bar Compress air；
|
|
Package list
|
-
Package size:1.270×0.570×1.470m;
-
Gross weight: 176Kg;
-
CBM: 1.064133
|
|
H.S.Code
|
8443198000
|
|
Certicate
|
CE
|
|
P1-420CPSC One color pad printer //Advantage
|
|
Function
|
-
Sealed cup move from right to left and fit for printing long objects;
-
Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
-
T-slot structure, easy installation of fixtures and products;
-
Hand pick and place workpiece, operating more handy;
-
Microcomputer program control, the movement is more accurate and reliable;
-
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
-
Equipped with four counters, can effectively measure the number of products;
-
Structure using die-casting aluminum, lightweight and solid.
-
Independent Rubber pad up and down stroke and speed adjustment function;
-
Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
-
Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
-
Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
-
Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
-
World famous pneumatic components to ensure the long service life of machine;
-
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.
|
