Casa > Lista de Produto > Máquina de impressão de tela > Impressora de tela de mesa > Impressora de tela de comprimido de aprovação de CE a quente com mesa de trabalho em T-slot
Grupo de Produto
Serviço on-line

Impressora de tela de comprimido de aprovação de CE a quente com mesa de trabalho em T-slot

Compartilhar no:
Preço unitário: USD 1650 / Set/Sets
Min.Order Preço unitário
1 Set/Sets USD 1650 / Set/Sets
Tipo de pagamento: L/C,T/T
Terms of Trade: FOB,CIF,EXW,FCA,CPT,CIP
Quantidade de pedido mínimo: 1
Preço unitário: USD
Informação básica
Modelo:ST-3050PT
Type of printing plate: Screen Printer
Applicable industry: Hotels, Building Material Shops, Machinery Repair Shops, Home Use, Energy &Amp; Mining, Advertising Company
Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets): United States, Germany, Brazil, Indonesia, Mexico, Thailand, Australia, Argentina
Showroom location (in which countries are there sample rooms overseas): Brazil, Indonesia, Mexico, Thailand, Argentina, Uae, Sri Lanka, South Africa
status: New
place of origin: China
use: Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer
degree of automation: Semi-Automatic
Printing color number and surface number: Single Color
warranty period: 1 Year
Core selling point: Easy To Operate
Marketing type: Ordinary Product, New Product 2019
Mechanical test report: Provided
Video factory inspection: Provided
Core component warranty period: 1 Year
Core components: Plc, Engine
Table Size: 300*500mm
Additional Info
Pacote: Caixa de madeira
produtividade: 20 Sets/month
marca: KC
transporte: Ocean
Lugar de origem: Dongguan
Apoio sobre: 100 Sets/month
Certificados : CE Certificate
porta: Shenzhen,Guangzhou,Hongkong
Descrição do produto

Impressora de tela de mesa com uma mesa de trabalho em T-slot

A versão reduzida da máquina de impressão de tela plana da área de trabalho foi projetada para atender às necessidades dos usuários no campo do processamento de impressão de tela com pequeno investimento no mercado. Possui todas as funções da máquina de impressão de tela plana, mas o preço é muito baixo e pode imprimir quase todos os produtos planos.
Não tem chassi e pode ser operado na mesa. Ele usa controle pneumático e requer uma compra adicional de um compressor de ar; Também pode ser instalado com uma tabela de sucção e uma tabela de slot T. A tabela de sucção é usada para imprimir papel e filme, a mesa de sulco é adequada para imprimir produtos de moldagem de injeção tridimensional.
Em termos de precisão, sua área de impressão é pequena e sua precisão é completamente adequada para a maioria dos produtos, e também é considerado como usar trilhos de guia linear para controlar a tela para cima e para baixo, e pode basicamente atender aos requisitos para o registro de cores.

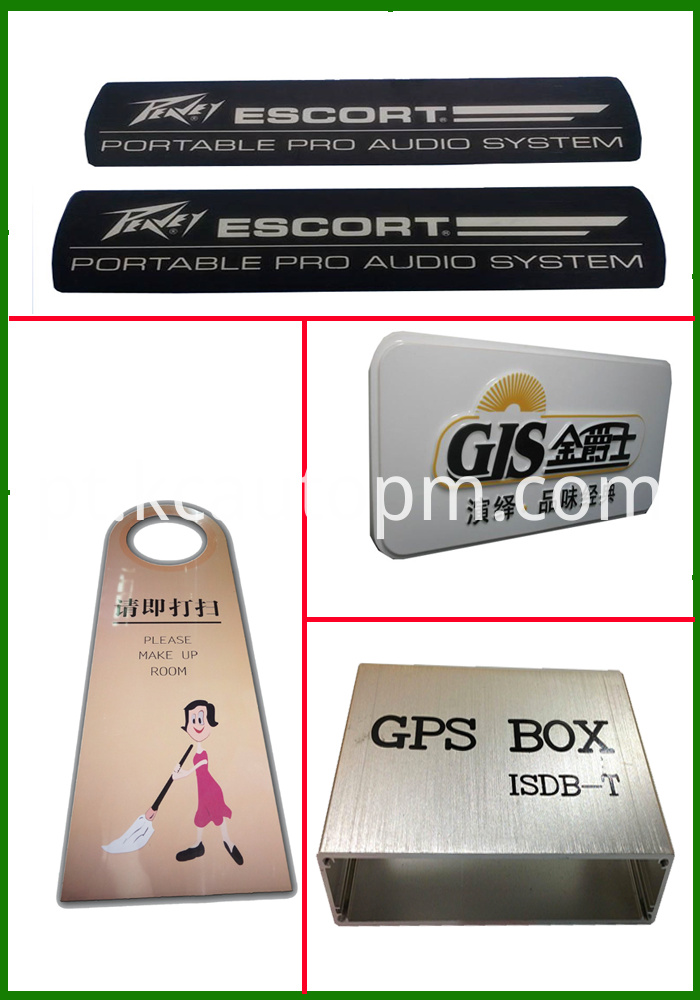

Amostras

303

Solução

300

Caso de teste

302

Dados


ST-3050PT is a table top pneumatic screen printer with T-grove worktable.Pneumatic screen printing machine Use: glass, paper, wood, plastic, pieces and other small flat material high-precision flat screen printing.

Flat screen printing machine Guide

  • T-Groove table to facilitate the production of injection  , suitable for Plastics parts etc.
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • Ruber squeegee and screen rame controller by High precision liner guide rial.
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Application

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case

Parameters

  • Max printing thickness: 150 mm;
  • Air consumption: 60Litre/Min;
  • Dimension of working table: 300×500mm;
  • Max printing areas: 290×490mm;
  • Max printing speed: 1000Pcs/H;
  • Max frame dimension: 500×750mm;
  • Compress air: 5-7 bar;
  • Stroke of cylinder up and down:125mm;
  • Stroke of Squeegee: 500mm;
  • Table Precision: 0.05mm;
  • Rang adjustment of table: 10mm

Advantage

  • T-Groove table to facilitate the production of injection , suitable for All rigid and Plain products.Printing Paper, film and UV Coating Process;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.
