VENDA DE VENDA QUENTE Fácil operação de comprimido Máquina de impressão de tela de precisão
Preço unitário: USD 1750 / Set/Sets
| Min.Order |
Preço unitário |
| 1 Set/Sets |
USD 1750 / Set/Sets |
Modelo:ST-3050PV
Type of printing plate: Screen Printer
Applicable industry: Hotels, Machinery Repair Shops, Farms, Home Use, Food Shop, Food &Amp; Beverage Shops
Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets): Thailand, Australia, Argentina, Uae, Sri Lanka, South Africa
Showroom location (in which countries are there sample rooms overseas): Brazil, Indonesia, Mexico, Thailand, Argentina, Uae, Sri Lanka
status: New
place of origin: China
use: Label Printer, Card Printer, Bill Printer, Cloths Printer
degree of automation: Semi-Automatic
Printing color number and surface number: Single Color
warranty period: 1 Year
Core selling point: Easy To Operate, High-Accuracy, Low Noise Level, High Safety Level
Marketing type: Hot Product 2019, Ordinary Product
Mechanical test report: Provided
Video factory inspection: Provided
Core component warranty period: 1 Year
Core components: Motor, Engine
Table Size: 300*500mm
Pacote: Caixa de madeira
produtividade: 50 sets/month
marca: KC
transporte: Ocean
Lugar de origem: Dongguan
Apoio sobre: 50 sets/month
Certificados : CE Certificate
porta: Shenzhen,Guangzhou,Hongkong

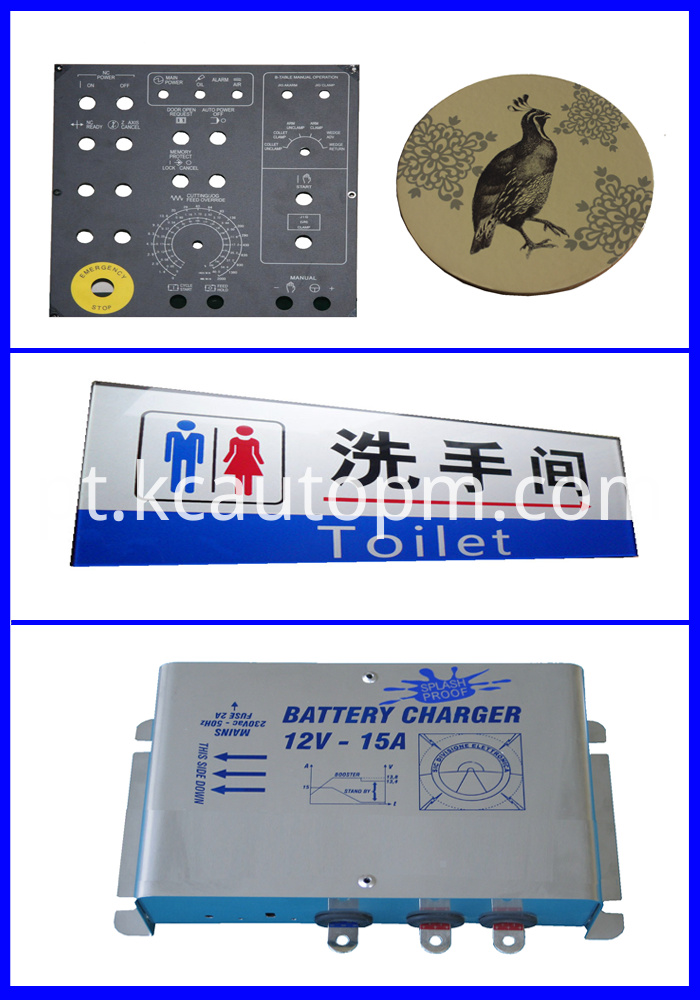

Amostras
A versão reduzida da máquina de impressão de tela plana da área de trabalho foi projetada para atender às necessidades dos usuários no campo do processamento de impressão de tela com pequeno investimento no mercado. Possui todas as funções da máquina de impressão de tela plana, mas o preço é muito baixo e pode imprimir quase todos os produtos planos.
Não tem chassi e pode ser operado na mesa. Ele usa controle pneumático e requer uma compra adicional de um compressor de ar; Também pode ser instalado com uma tabela de sucção e uma tabela de slot T. A tabela de sucção é usada para imprimir papel e filme, a mesa de sulco é adequada para imprimir produtos de moldagem de injeção tridimensional.
Em termos de precisão, sua área de impressão é pequena e sua precisão é completamente adequada para a maioria dos produtos, e também é considerado como usar trilhos de guia linear para controlar a tela para cima e para baixo, e pode basicamente atender aos requisitos para o registro de cores.
Descrição da máquina
Tabletop Precision Screen printing machine
Cast aluminum alloy beams, pneumatic lift mode, pneumatic printing control, printing smooth, high precision, more convenient, fast;
Scraper mechanism using high-precision rodless cylinder control, smooth operation, scraping ink back to ink are used brand-name cylinder mechanism, easy to adjust.
Tabletop Precision Screen printing machine//Feature
-
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
-
Screen form up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen form Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
Rubber squeegee and screen frame controller by High precision liner guide rial.
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
Tabletop Precision Screen printing machine//Parameters
-
Max printing thickness: 150 mm;
-
Air consumption: 60Litre/Min;
-
Dimension of working table: 300×500mm;
-
Max printing areas: 290×490mm;
-
Max printing speed: 1000Pcs/H;
-
Max frame dimension: 500×750mm;
-
Compress air: 5-7 bar;
-
Stroke of cylinder up and down:125mm;
-
Stroke of Squeegee: 500mm;
-
Table Precision: 0.05mm;
-
Rang adjustment of table: 10mm
Tabletop Precision Screen printing machine//Advantage
-
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
4-Digit auto counter; to facilitate the measurement of production efficiency
|
