- With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
- With coin aluminum structure ensure more stabilization and long life.
- Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
- Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
- Can print almost small size objects . So sold very nice in the world.
- Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
- Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
Application fields
Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork,office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

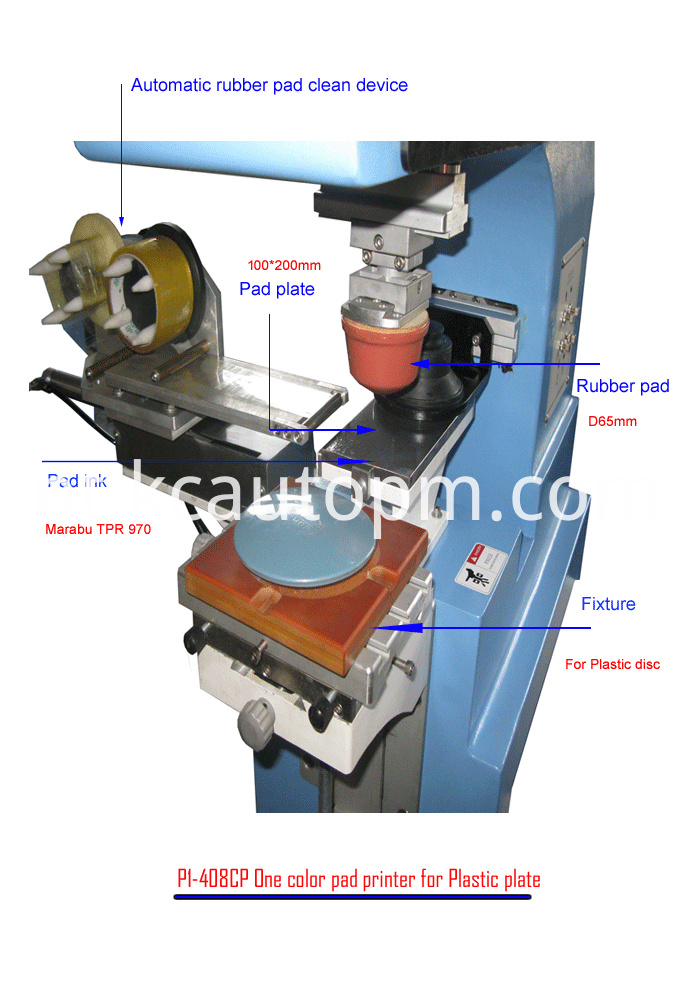

One color pad printer //Parameter
P1-408CP
- Max. steel plate: 100 ×200 mm;
- Ink cup size: Ф90 mm;
- Max. printing area :80×80 mm ;
- Printable color quantity:1;
- Max. printing speed: 1300 pcs/h.
P1-410CP
- Max. plate size: 100×250 mm;
- Ink cup diameter: Ф90 mm;
- Max. printing area: 80×130 mm;
- Max. printing speed: 1100 pcs/h;
- Printable color quantity:1;
P1-412CP
- Max. plate size: 100×300 mm;
- Ink cup diameter: Ф90 mm;
- Max. printing area: 80×170 mm;
- Max. printing speed: 1000 pcs/h;
- Printable color quantity:1
Works supply: 110V-220V Power supply;5-7Bar Compress air;
Package dimension: 0.970×0.570×1.450 m;
Gross weight: 110 KG;
CBM: 0.801705
H.S.Code: 8443198000
Certificate: CE
One color pad printer //Advantage
- Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
- T-slot structure, easy installation of fixtures and products;
- Hand pick and place workpiece, operating more handy;
- Microcomputer program control, the movement is more accurate and reliable;
- Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
- Equipped with four counters, can effectively measure the number of products;
- Structure using die-casting aluminum, lightweight and solid.
- Independent Rubber pad up and down stroke and speed adjustment function;
- Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
- Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
- Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
- Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
- World famous pneumatic components to ensure the long service life of machine;
- Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.
|
